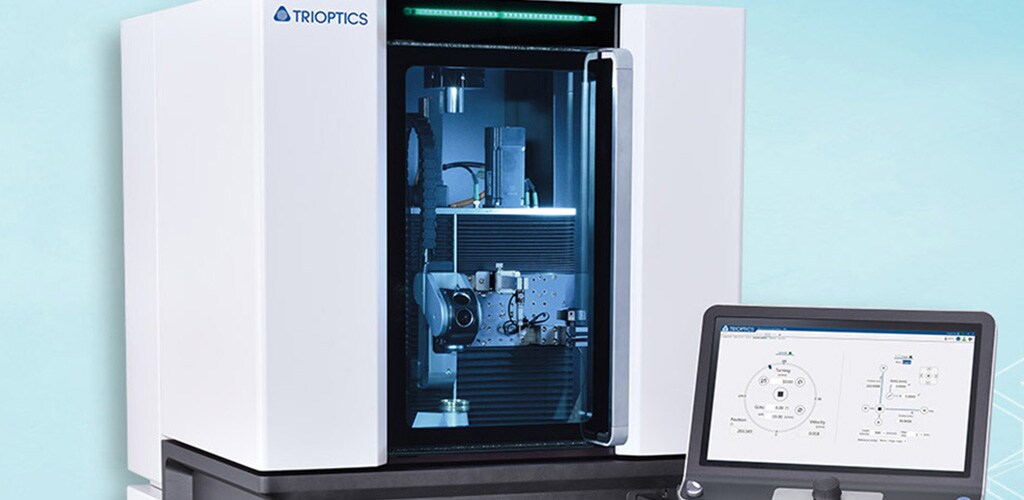

ATS – Alignment Turning Station
High-precision centering, alignment and machining of mounted lenses and lens groups
Versatile
High manufacturing accuracy
High profitability
Products

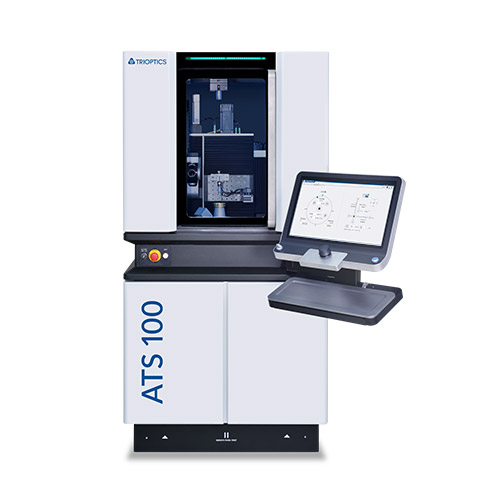

ATS 100
The compact alignment turning station
ATS 100 is optimized for the processing of lens systems with a diameter of up to 100 mm and a weight of up to 3 kg.
- Automated alignment chuck
- Reproducible manufacturing with a repeatability of better than 2.5 µm
- Easy to clean via integrated chip extraction
- Suitable for cycle time optimized processing of large batch sizes

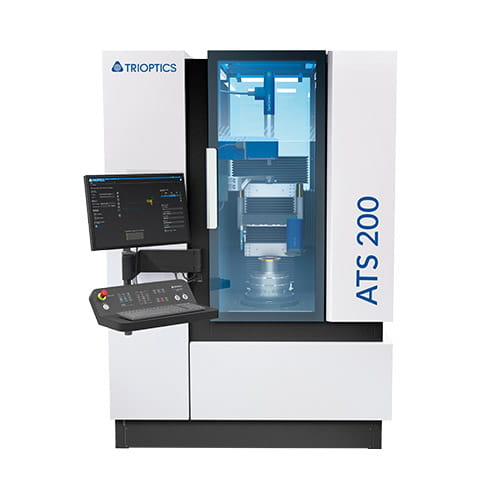

ATS 200
The high-precision alignment turning station
ATS 200 is designed for processing small and medium-sized lenses in medium batch production.
- Optional with hydrostatic spindle
- Automated adjusting chuck
- Great stiffness and thermal stability due to optimized granite base
- Reproducible manufacturing with a repeat accuracy of better than 1.0 µm
For very high accuracy: ATS 200 UP

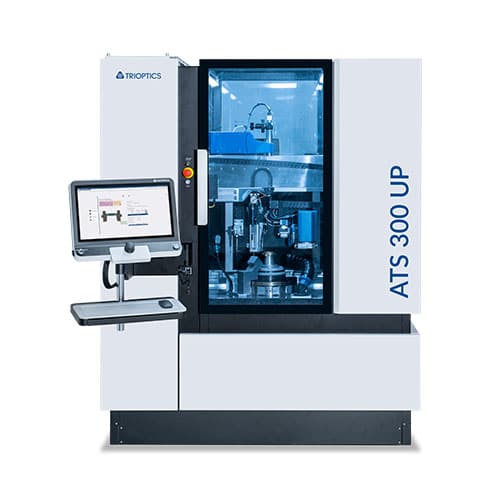

ATS 300 UP
Flexibility in the lens diameter
Mounted lenses up to a diameter of 300 mm are machined with high precision by the ATS 300 UP.
- Hydrostatic spindle
- Excellent damping ensuring very high accuracy requirements of up to 0.5 µm
- Comprehensive accessories

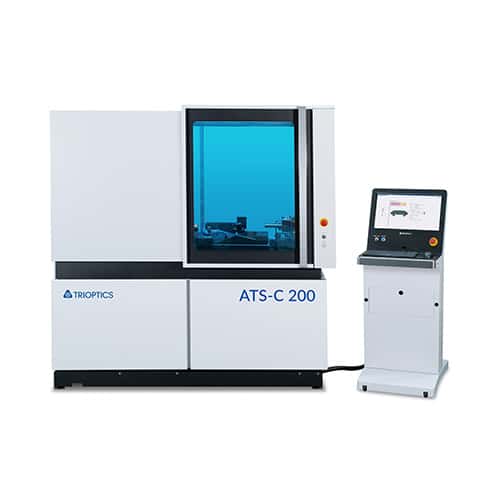

ATS-C
CNC alignment turning for short cycle times
Built in a horizontal setup, ATS-C offers full CNC capabilities that allow for a swift integration of the machine to existing production processes.
- Optimized cycle times for small, mounted lenses
- Processing of free-form cell designs
- Intuitive machine operation enables quick and easy realization from design to workpiece
Videos
Software
ATS Control
One software for all measurement and production processes
The ATS Control combines operation of the machine functions with the routines for measurement of centering error and alignment. The user is guided step by step, both in setting up sample geometry and carrying out the processing procedure. The software continually monitors the results of the production process.
Upgrades
- Aerostatic spindle
- Hydrostatic spindle

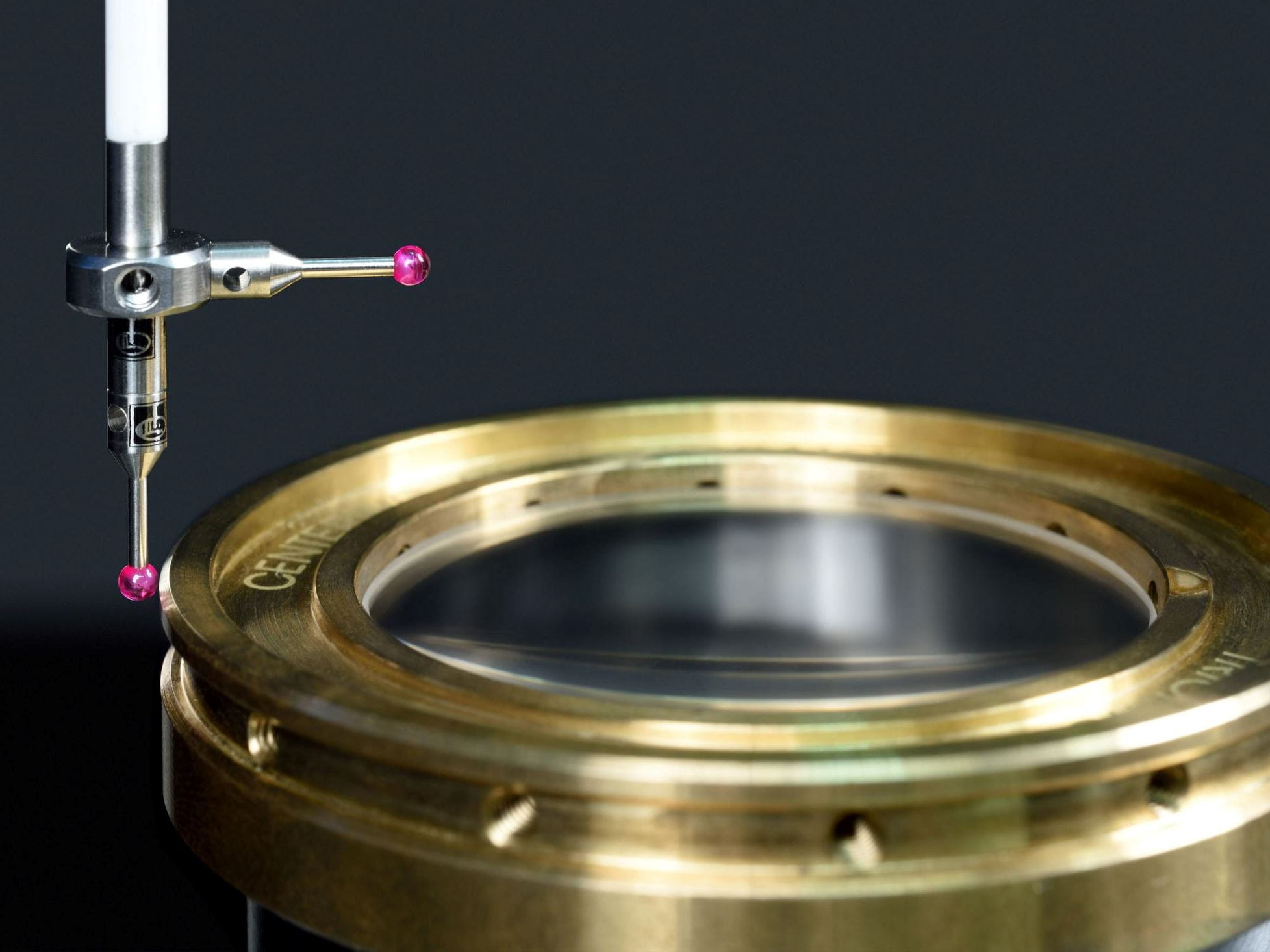

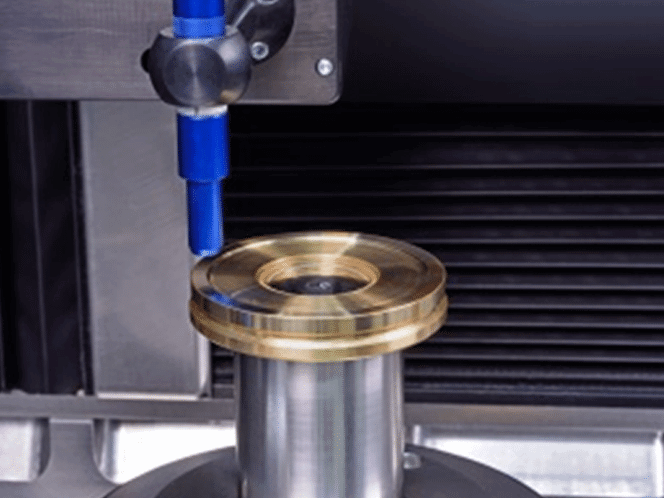

- Tactile sensor
- Optical sensor
- Temperature sensor
- Workpiece temperature sensor
- Sensor for aspheres

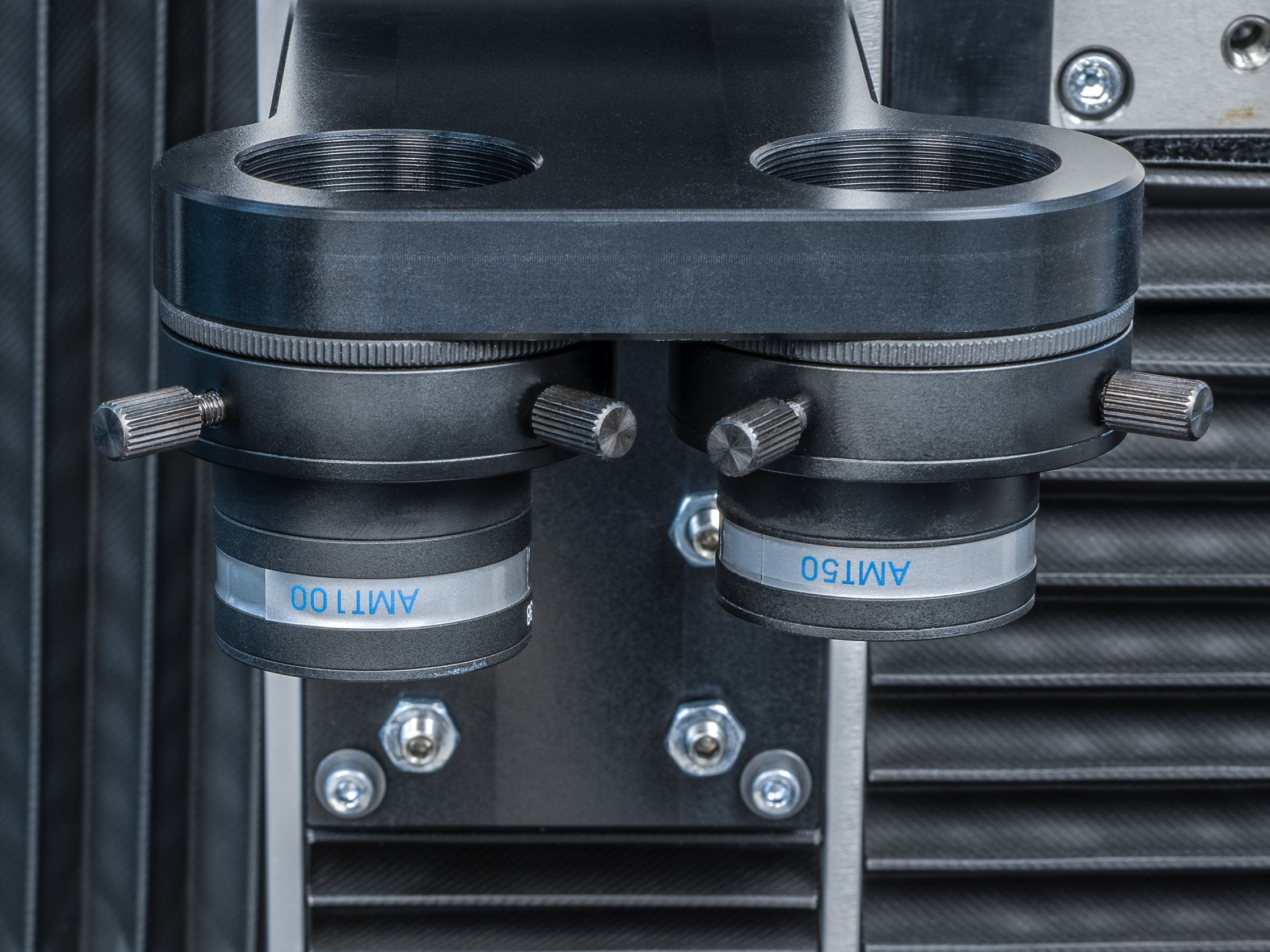

- Second autocollimator

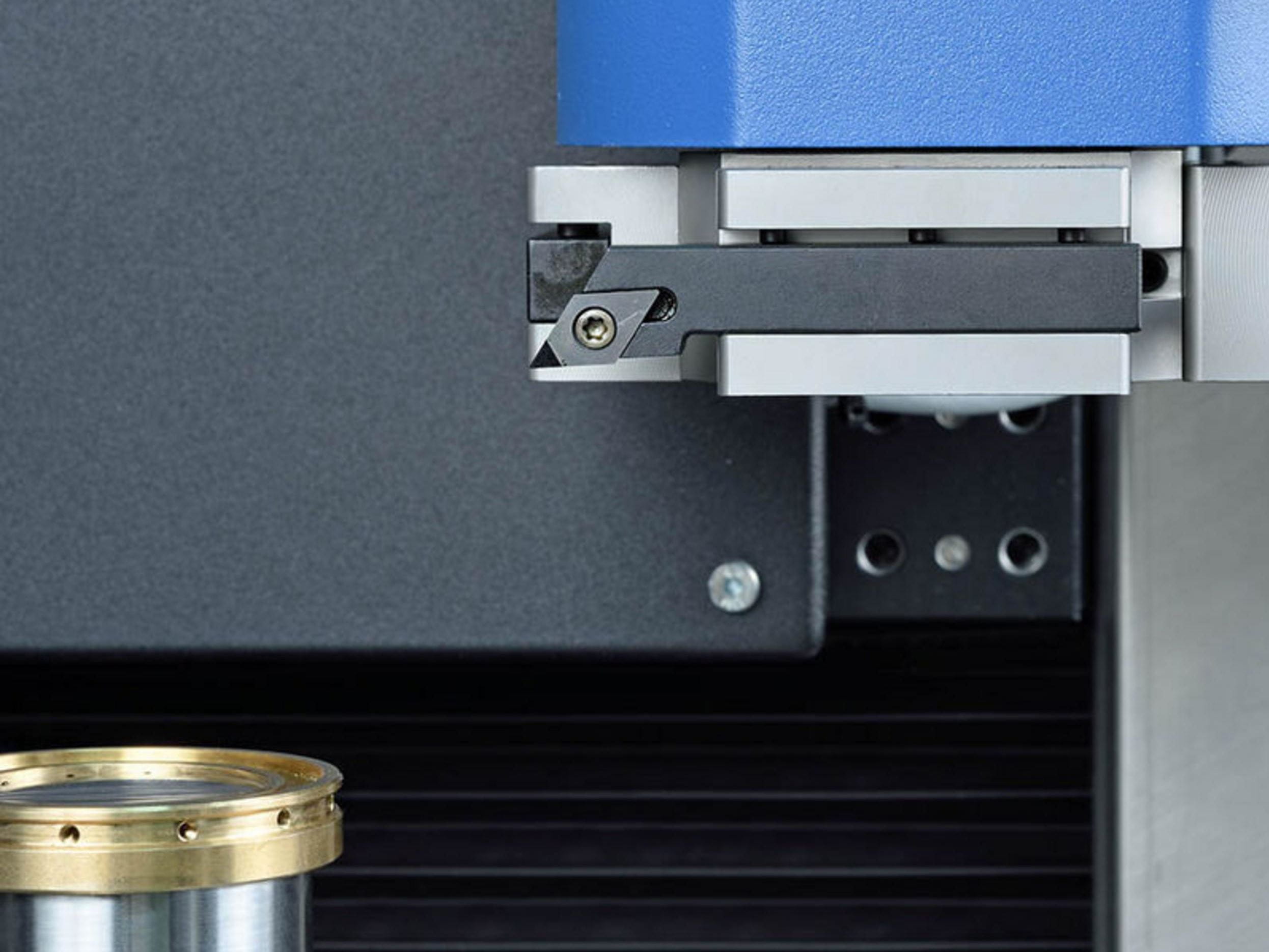

- Quadruple tool changer
- Head lens changer
- Minimum lubrication

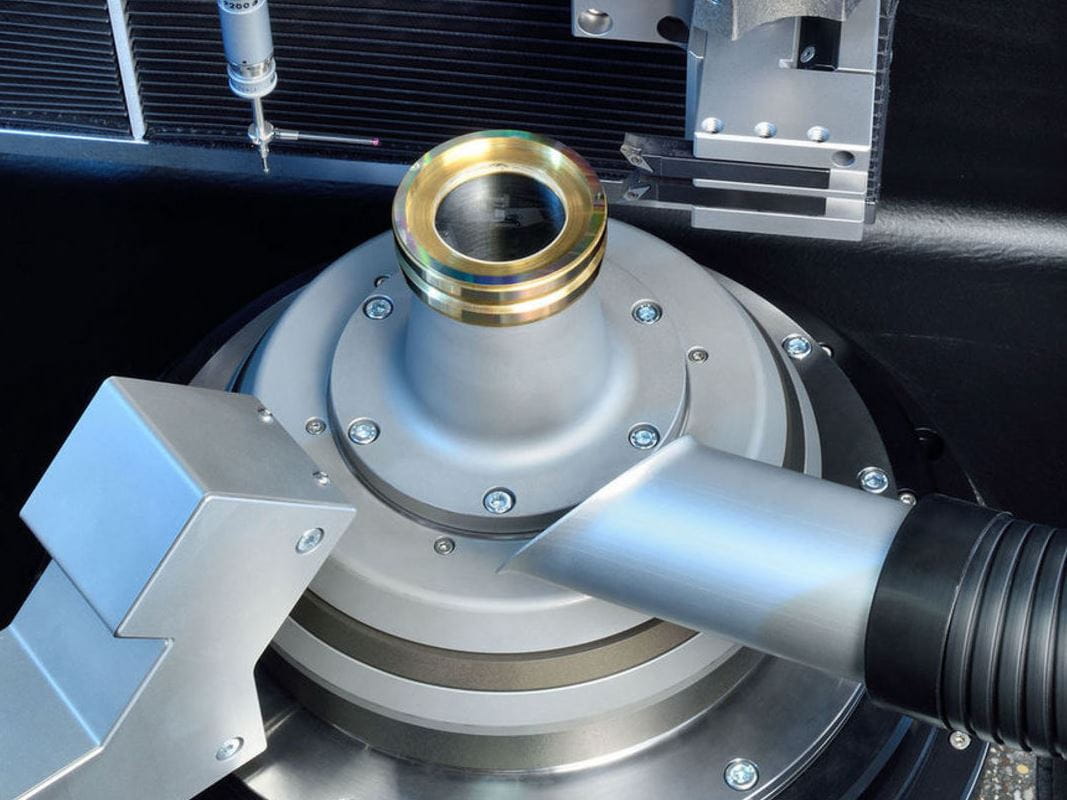

- Chip extraction
- 2D code reader

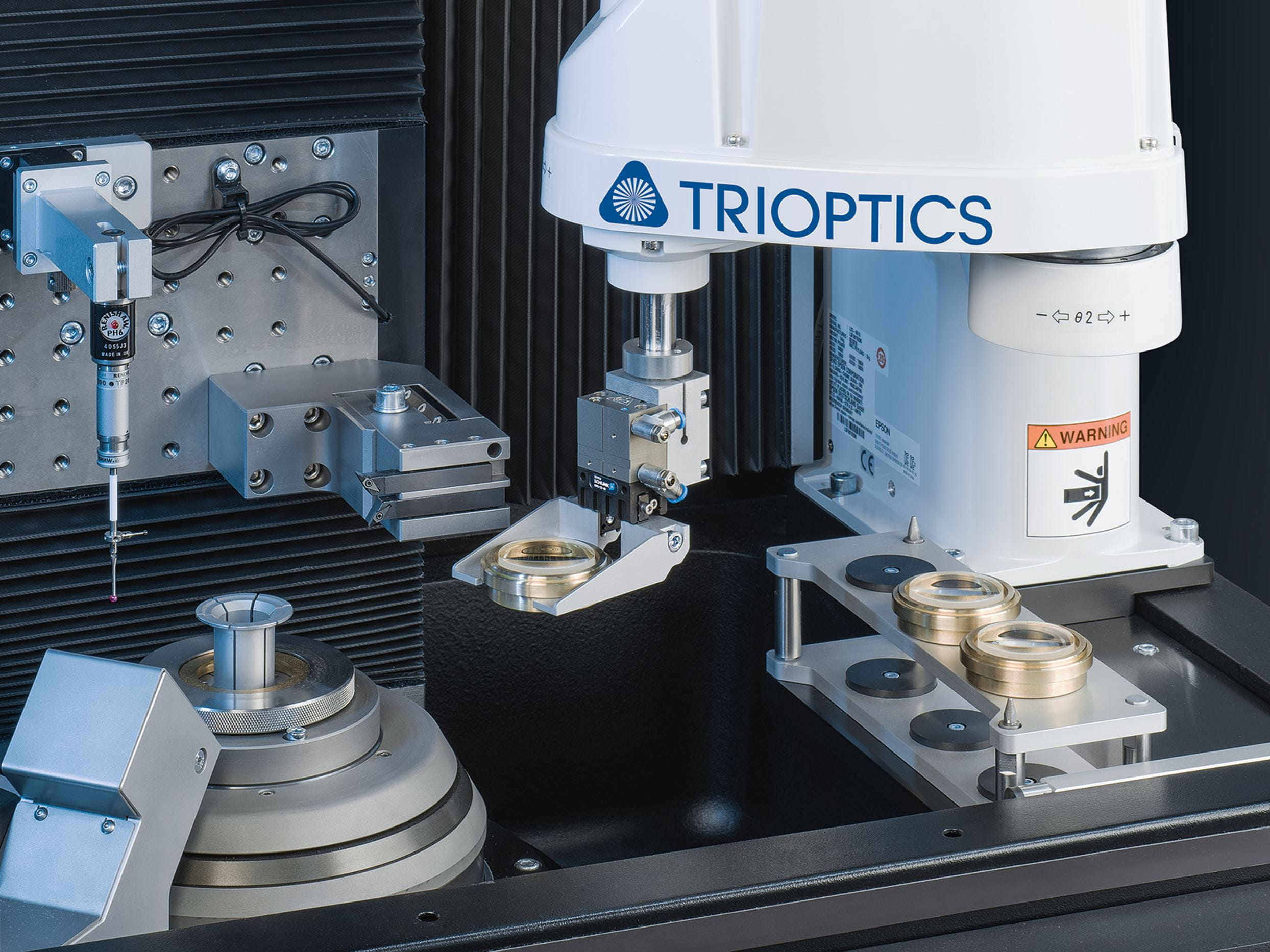

- Increases in efficiency by adding a robot to the ATS for automatic loading and unloading.

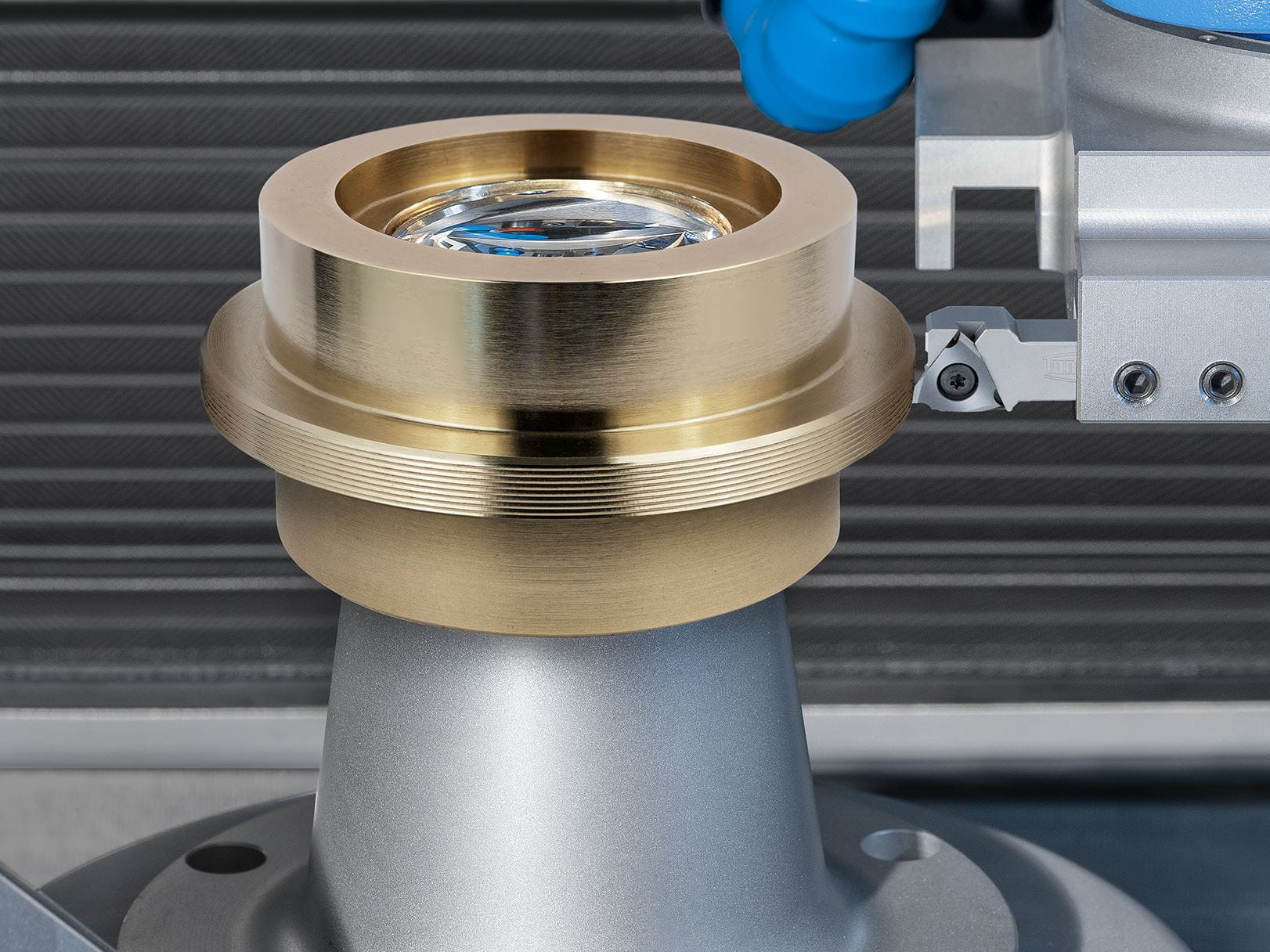

- Cutting of threads and grooves
ATS Product request
Are you interested in a product and would like to receive a quote?
Whether you need advice or already have specific requirements, we will be happy to help you!
Use our contact form and get quick feedback from our experts.
