Collimators
The Collimator is an optical instrument consisting of a well corrected objective lens with an illuminated reticle at its focal plane.
The emerging beam is parallel (collimated beam), so that the image of the reticle is projected at infinity. The collimator is usually set up in this way known as infinity adjustment (setting).
Collimator with infinity setting
Key Features:
- The image of the reticle is projected into infinity at a wavelength of 546 nm (other wavelengths also available on request)
- The distance between reticle and objective lens is fixed
- TRIOPTICS offers collimators with different focal lengths depending on the application.
- Optionally with reticle changer (RC), filter changer (FC), or with reticle and filter changer (RC/FC)
- Wide range of standard reticles and production of custom reticles if required
- The collimators can be equipped with a dual micrometer screw for shifting the reticle (optionally with digital display)
Applications:
In combination with a telescope, the following measurements can be performed:

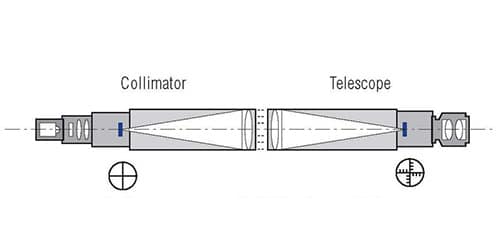

- Angle measurement

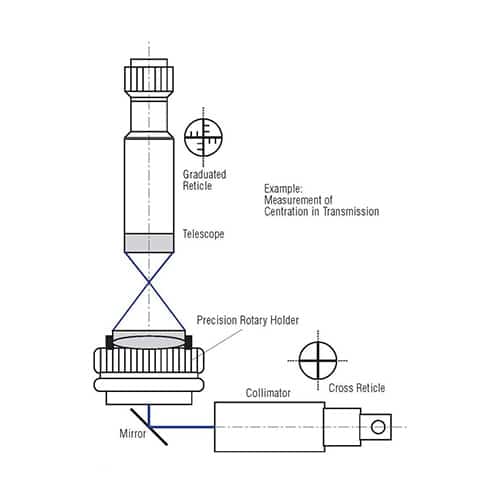

- Measurement of optical parameters (e.g. effective focal length, centration errors)
- Testing the infinite setting of optical systems
Several different collimators
| TYPE | Focal Length (mm) | Tube diameter (mm) | Free Aperture (mm) | Field of View |
|---|---|---|---|---|
| COL 50-38 | 50 | 38,1 | 18 | 9° |
| COL 100-38 | 100 | 38.1 | 30 | 6° |
| COL 150-38 | 150 | 38.1 | 30 | 4° |
| COL 200-38 | 200 | 38.1 | 30 | 3° |
| COL 300-38 | 300 | 38.1 | 30 | 2° |
| COL 300-57 | 300 | 57 | 50 | 2° |
| COL 500-57 | 500 | 57 | 50 | 2° |
| COL 500-115 | 500 | 115 | 100 | 1.2° |
| COL 1000-115 | 1000 | 115 | 100 | 0.6° |
| COL 1000-140 | 1000 | 140 | 125 | 0.6 |
Optitest® Upgrades & Accessories
In addition to the Optitest® collimators, telescopes and autocollimators, TRIOPTICS offers a large range of opto-mechanical accessories, often required for certain standard applications.
Holders
Clamp Fixture
- Clamp fixture D38
- Clamp fixture D57
- Clamp fixture D115
Adjustable Holder
- Adjustable holder D38
- Adjustable holder D57
- Adjustable holder D115
- Adjustable holder D140
V-Prism (magnetic prism):
- V-Prism (magnetic prism) D20-D50
- V-Prism (magnetic prism) D50-D150
Stands
- Manual Stand for D38
- Manual Stand for D57
- fixture for wedge measurement
- Stand
Clampfixture
Adustable holder
Mirrors
Mirrors and optical flats in mount:
- Mirrors in mount D38/D57
- Mirrors in mount D115/D140
- Optical flat in mount for D38/D57
- Optical flat in mount for D115/D140
Adjustable mirrors and optical flats in mount:
- Adjustable mirrors for D38/D57
- Adjustable mirrors for D115/D140
- Adjustable optical flat for D38/D57
- Ground plate
- Ground plate with stop bar
Deflecting mirror:
- 45° deflecting mirror for D38
- 45° deflecting mirror for D57
- 45° deflecting mirror for D115
- Penta Prism 50mm +/-1´ in holder
- Master Penta Prism in holder, Aperture 1 3/4 inch x 1 7/8 inch
- Master Penta Prism in holder, Aperture 1 3/4 inch x 1 7/8 inch
- 90 degree optical square with adjustable mount
45° deflecting mirrors
Alignment Tools
Laser prealignment tool:
- Laser prealignment tool D57
- Laser prealignment tool D115/D140
Viewfinder prism:
- Viewfinder prism
Calibration Tools
Reference prism:
- 90° reference prism in mount
Polygons:
- Polygon 12 sides in holder, 5 second accuracy
Calibration wedges:
- Calibration wedge 10 arcmin
- Calibration wedge for TriAngle UltraSpec 10 arcmin, with integrated band-pass filter
12 sided polygon
Other Accessories
- Tool for rotary axis measurement
- precision level
- remote control for TA
