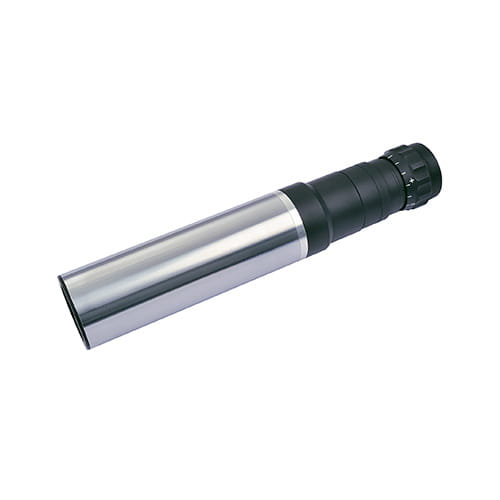

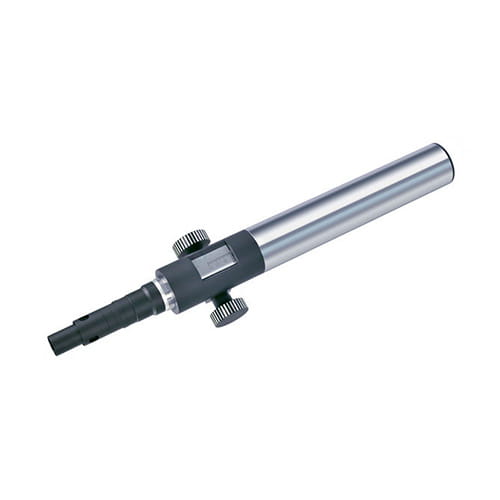

Dynameter
The Dynameter is used in optical testing for measuring the magnification of a telesccope:
- Measuring of the diameter of exit pupil
- Checking the distance between eyepiece and exit pupil
- Measurement of magnification of telescopes
| Type | Magnification | Distance Range | Diameter Range | Reticle |
|---|---|---|---|---|
| DYN 90 | 12 x | 90 mm, div. 0.5mm | 10 mm | 10 mm with div. 0.1 mm |
Optitest® Upgrades & Accessories
In addition to the Optitest® collimators, telescopes and autocollimators, TRIOPTICS offers a large range of opto-mechanical accessories, often required for certain standard applications.
Holders
Clamp Fixture
- Clamp fixture D38
- Clamp fixture D57
- Clamp fixture D115

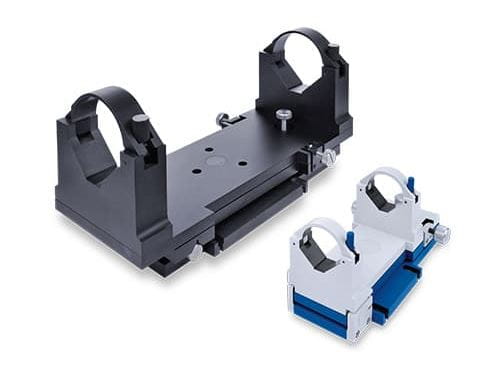

Adjustable Holder
- Adjustable holder D38
- Adjustable holder D57
- Adjustable holder D115
- Adjustable holder D140
V-Prism (magnetic prism):
- V-Prism (magnetic prism) D20-D50
- V-Prism (magnetic prism) D50-D150
Stands
- Manual Stand for D38
- Manual Stand for D57
- fixture for wedge measurement

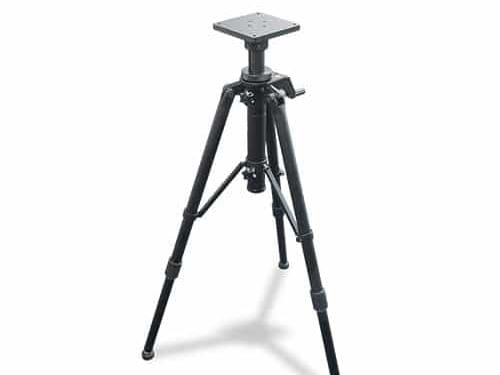

- Stand

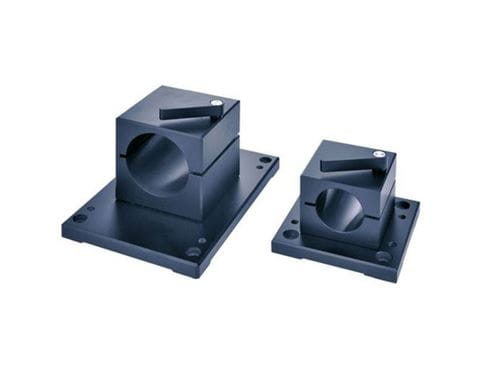

Clampfixture
Adustable holder
Mirrors
Mirrors and optical flats in mount:
- Mirrors in mount D38/D57
- Mirrors in mount D115/D140
- Optical flat in mount for D38/D57
- Optical flat in mount for D115/D140

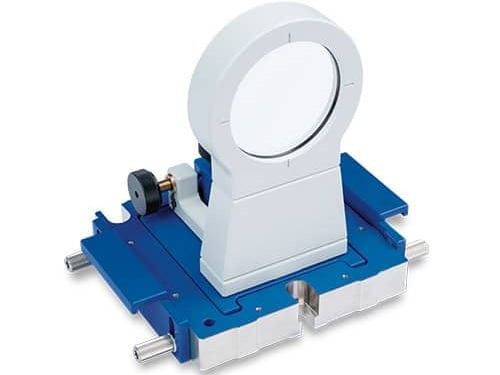

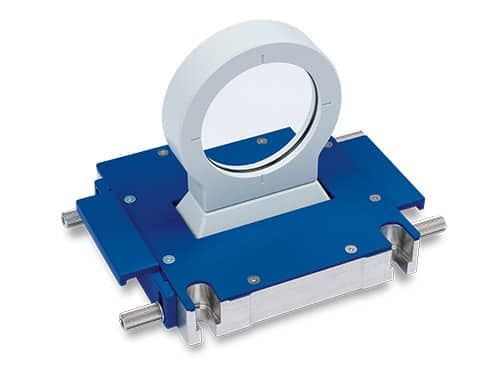

Adjustable mirrors and optical flats in mount:
- Adjustable mirrors for D38/D57
- Adjustable mirrors for D115/D140
- Adjustable optical flat for D38/D57
- Ground plate
- Ground plate with stop bar
Deflecting mirror:
- 45° deflecting mirror for D38
- 45° deflecting mirror for D57
- 45° deflecting mirror for D115
- Penta Prism 50mm +/-1´ in holder
- Master Penta Prism in holder, Aperture 1 3/4 inch x 1 7/8 inch
- Master Penta Prism in holder, Aperture 1 3/4 inch x 1 7/8 inch
- 90 degree optical square with adjustable mount
45° deflecting mirrors
Alignment Tools

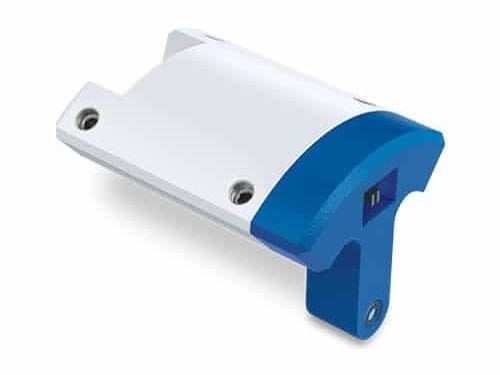

Laser prealignment tool:
- Laser prealignment tool D57
- Laser prealignment tool D115/D140
Viewfinder prism:
- Viewfinder prism
Calibration Tools

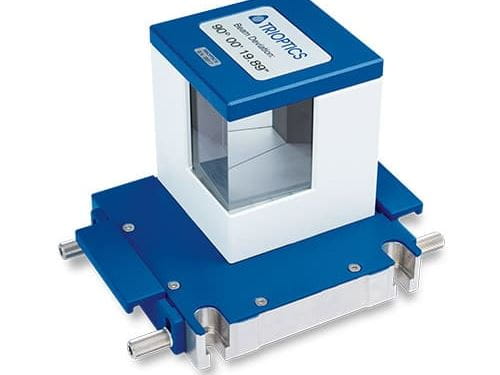

Reference prism:
- 90° reference prism in mount
Polygons:
- Polygon 12 sides in holder, 5 second accuracy
Calibration wedges:
- Calibration wedge 10 arcmin
- Calibration wedge for TriAngle UltraSpec 10 arcmin, with integrated band-pass filter

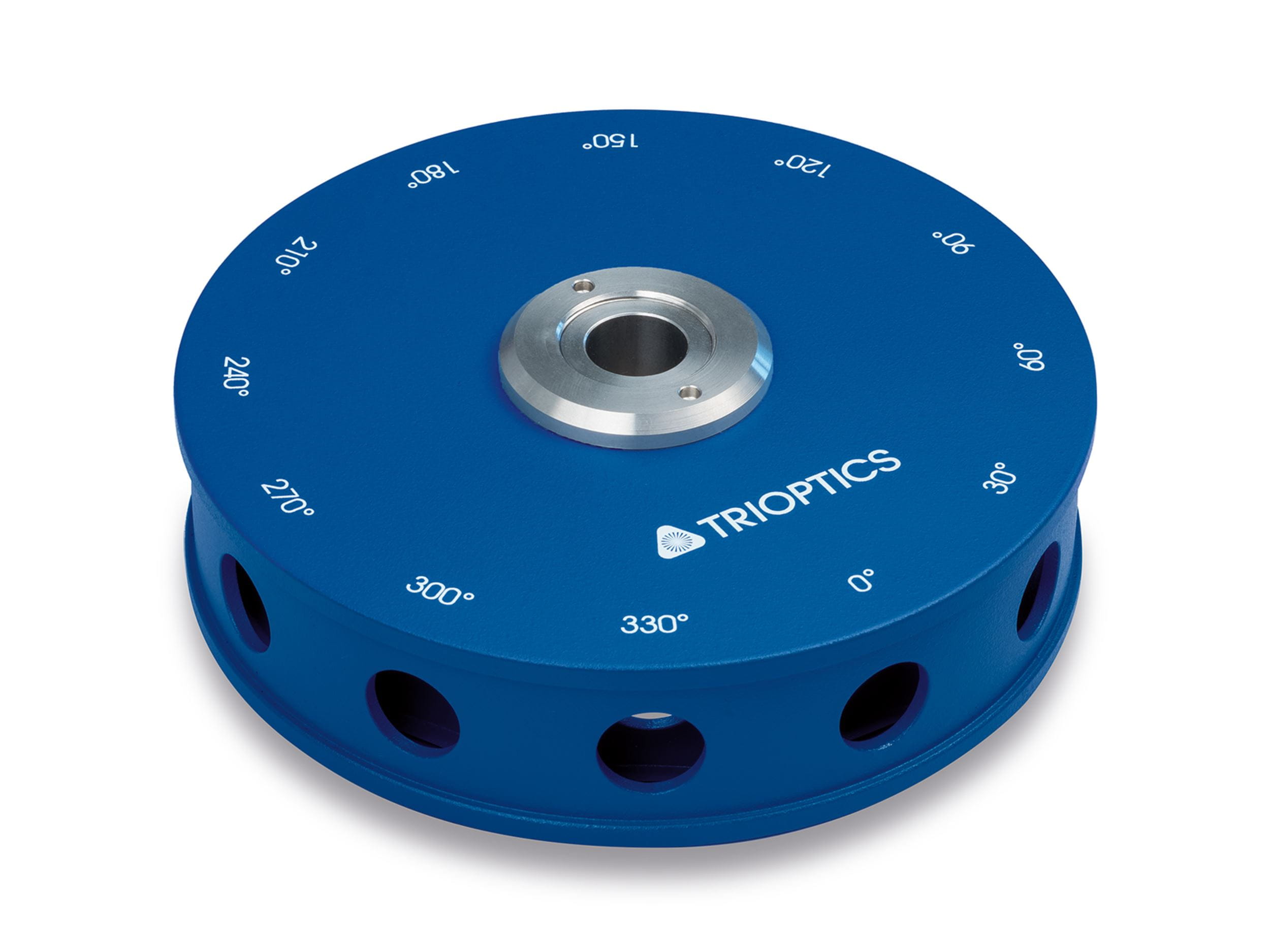

12 sided polygon
Other Accessories
- Tool for rotary axis measurement
- precision level

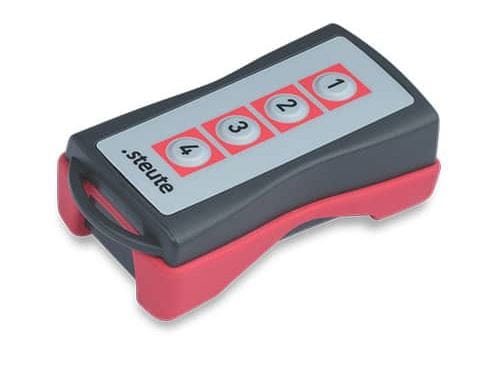

- remote control for TA
