TriAngle NIR

DESCRIPTION

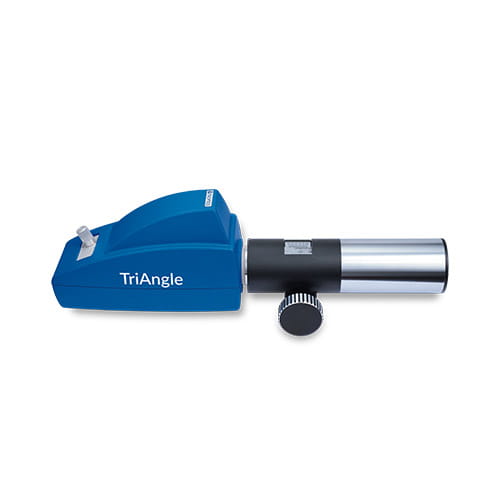

TriAngle Focus - Focusing Electronic Autocollimator

The TriAngle NIR electronic autocollimators are based on the standard TriAngle design but employ NIR LED illumination for the reticle. The TriAngle NIR electronic autocollimators are commonly used for applications which require measurement at the design wavelength in the NIR.

It is used for measurements on material which only transmit light in the NIR range, such as are used in night vision devices. Another application is the laser beam alignment of lasers that emit light at a wavelength in the NIR spectral range.

TriAngle NIR – Electronic autocollimator for near infrared applications

Key Features:

Standard wavelength: 1064 nm (other wavelengths available on request)
Maximum set of measurement functions including various wedge and prism measurements
Compatibility with objective tubes of different focal lengths
A variable measuring range and accuracy performance between 2.5 and 0.2 arcsec depending on the focal length
Modern high resolution sensors offering the best image quality and signal to noise ratio
NIR LED illumination
OptiAngle 6 Software

Applications:

Measurements at wavelengths in NIR
High precision tilt angle measurement
Aligning multiple optical surfaces
Wedge angle in reflection
Wedge angle in double pass
45° prism error
90° prism error
Wobble
Angle calibration tasks
Straightness measurement
Flatness measurements
Corner cube inspections

Videos:

SOFTWARE

OptiAngle: The Complete Software Package for Angle Measurement

The software OptiAngle® is a powerful tool covering all aspects of accurate angle measurement with the TriAngle electronic autocollimators in terms of measurement, control and analysis of the angular data. The well organized and modern menuguided user interface assists even the inexperienced operator to perform accurate measurements and to obtain repeatable results. A large set of pre-defined standard measurement applications is integrated into OptiAngle® which cover all established measurement techniques in optical and mechanical industry. In addition, customized measurement routines can be easily developed and embedded either by TRIOPTICS or the experienced end user. All OptiAngle® measurement functions can be further used in other common applications like Lab-View or Visual Basic (Excel).

Software Features und Functions:

The TriAngle software provides many features to simplify the daily use of TriAngle autocollimators whether in the laboratory or in the production environment.

Real-time camera display
Numerical and graphical display of measurement data
Optional full screen camera window (visual alignment mode)
Indicators inside the camera window
Simultaneous measurement with multiple (up to 12) autocollimators
Simultaneous measurement of multiple surface reflections (up to 12)
Comprehensive data reporting functions
Data export format: ASCII (CSV), XLS, PDF
Selectable angle units for screen display and measurement certificate
Software remote control by host computer via RS232, TCP/IP interface
Programming interface by automation or via DLL
Scripting mechanism for customized measurement programs
Scripting interface for user-based solution
User defined measurement certificate layout
Demo programming examples for LabView, and VBA (Excel)
Multiple camera interface technology for IEEE 1394 (FireWire) or USB. On request: Gbit Ethernet, CameraLink or Analog Video Cameras
Production mode for batch/lot sample identification and result reporting
Load option of saved results

Easy Integration of Customized Measurement Solutions

The OptiAngle® software allows the integration of customized measurement programs with a dedicated user interface for specialized target applications. Custom specific measurement routines and display functions are quickly implemented to take care of specialized procedures, e.g. in a production environment.

The advantages are:

User interface adapted to specialized applications
Increase of throughput
Avoidance of faulty operations in production processes
Integration of external hardware and software possible
Adaptation to familiar data processing and display

TriAngle modular software concept

OptiAngle® Programming Interface (API)

In addition to the above scripting mechanism, the OptiAngle® functions can be embedded into a larger measurement framework which then can take control over the full functionality of OptiAngle® measurement applications.

OptiAngle® features an open software concept and programming interface which allows for the flexible and easy integration into other software environments. The angle measurement functions of TriAngle autocollimators can thus be integrated into almost any existing measurement application. In contrast to the scripting technology the user himself is enabled to develop the interfacing between the TriAngle autocollimator and his governing application. OptiAngle® functions are executed either by sending commands via serial port (RS232) or TCP/IP, or directly using the DLL based C programming interface (API). Existing sample applications and the comprehensive documentation demonstrate the control of TriAngle autocollimators by LabView, VBA, Excel. TRIOPTICS will be happy to assist the user to integrate the TriAngle functions into his own application.

TECHNICAL DATA

Overview

Illumination	NIR LED
Wavelength	780 ... 1064 nm
Spectral half-width	35 nm
Material Reflectivity	2 % ... 100 %

Measurement Frequency

USB 3.0	30 Hz (up to 50 Hz depending on the setting)
Firewire	30 Hz (up to 60 Hz depending on the setting)

High Speed camera with 120 Hz measuring rate available with different values for field of view and accuracy

TriAngle NIP - Data

Type	Effective focal length (mm)	Clear aperture (mm)	Resolution (arcsec)	Repeatability (arcsec)	Accuracy (arcsec)
TA NIR 100-38	100	26	0.20	0.50	2.5
TA NIR 150-38	150	30	0.14	0.36	1.7
TA NIR 200-38	200	30	0.10	0.24	1.3
TA NIR 300-38	300	30	0.06	0.16	0.75
TA NIR 300-57	300	50	0.06	0.16	0.75
TA NIR 500-57	500	50	0.04	0.10	0.4
TA NIR 1000-115	1000	100	0.02	0.06	0.2
TA NIR 1000-140	1000	125	0.02	0.06	0.2

Measuring range in autocollimation

Type	USB 3.0 hor. (x) × vert. (y) (arcsec)	Firewire hor. (x) × vert. (y) (arcsec)
TA NIR 100-38	6170x4940	6600x4900
TA NIR 150-38	4120x3300	4400x3250
TA NIR 200-38	3090x2470	3300x2450
TA NIR 300-38	2060x1650	2200x1600
TA NIR 300-57	2060x1650	2200x1600
TA NIR 500-57	1240x980	1300x950
TA NIR 1000-115	610x 490	650x480
TA NIR 1000-140	610x490	650x480

UPGRADES & ACCESSORIES

TriAngle Upgrades & Accessories

In addition to the TriAngle electronic autocollimator series, TRIOPTICS offers a large range of opto-mechanical accessories, often required for certain standard applications.
